X-Products
The next Generation X portfolio of cutting rules.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
Optimized
production runs
and make-ready
The innovation lies within the patented back-design of the cutting rule which paves the way for the predefined compensation area for the cutting rule to self-level under pressure. The cutting tip is therefore under less strain and remains sharper for a longer period of time. In day to day operation this means substantially longer tooling life. X-PRESS is especially suitable for large volume jobs where highest quality is needed.
Benefits
– Minimized make-ready time
– Excellent cut quality
– Extended knife lifetime
– Re-orders without patching
– Standard rule processing on auto-bending equipment
– Excellent cut quality
– Extended knife lifetime
– Re-orders without patching
– Standard rule processing on auto-bending equipment
Features

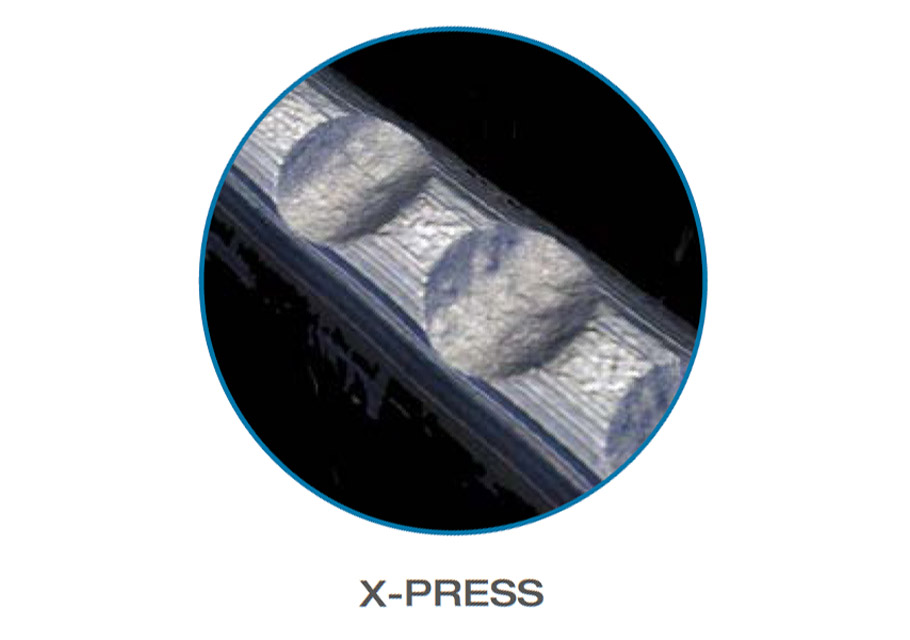

– Self-levelling cutting rule with micro serrated rule back
– Same processing as standard UNIVERSAL rules
– Improved knife service life
– Excellent bendability
– Same processing as standard UNIVERSAL rules
– Improved knife service life
– Excellent bendability
Application
– Solid board
– Corrugated board
– Corrugated board
Click picture to enlarge
| X-Press | |
| Hardeness | Body ~340 HV (~35 HRC) |
| Cutting tip ~ 660 HV (~58 HRC) | |
| Height | 23.8 mm (.937") |
| Thickness | 2 pt / 3 pt |
| Cutting bevel | CF / CFDB |
| Cutting execution | Shaved S, Polished P, Supreme M |
| Cutting angle | 53°, 42° |
| Cutting back | micro-serrated, self-levelling |
| Form of delivery | Lengths a 1,000 mm, Coils a 100 m (2pt) Coils a 60 m (3pt) |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
