X-Products
The next Generation X portfolio of cutting rules.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.

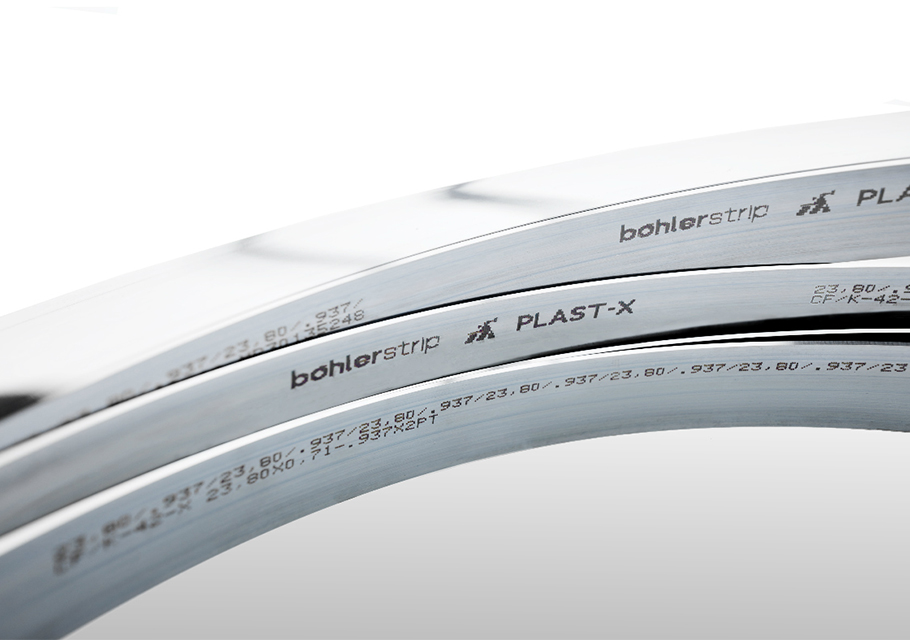

Plast-X
Plast-X is a well-established bohlerstrip innovation to cut PET, PE, PVC, PP, blister packs and thermoplastic materials. We apply technology from razor blade manufacturing, which drastically improves die-cutting performance. Plast-X is available in three versions. While PXS has the focus on best bendability, PXH offers best knife service life due to increased body and edge hardness. PX represents the ideal compromise between PXS and PXH.
Benefits
– Reduced friction
– Reduced cutting force
– Clean cut faces
– Reduced cutting force
– Clean cut faces
Features
– High edge hardness
– Ultra fine bevel-surface finish
– Extremely sharp cutting edge
– Ultra fine bevel-surface finish
– Extremely sharp cutting edge
Application

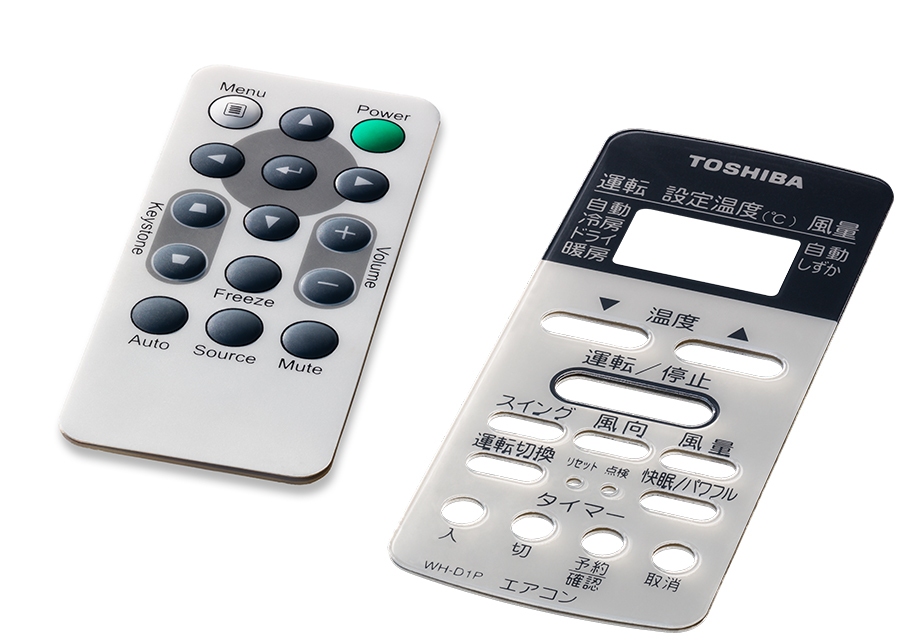

– PET, PE, PP, PVC, foils, blister
– Laminated substrates
– Coated or varnished cardboards
– Metallized boards
– Laminated substrates
– Coated or varnished cardboards
– Metallized boards
Specification
| PXS (soft) | PX (standard) | PXH (hard) | |
| Hardness | |||
| Body | ~340 HV (35 HRC) | ~390 HV (40 HRC) | ~450 HV (45 HRC) |
| Edge | ~660 HV (58 HRC) | ~700 HV (60 HRC) | ~700 HV (60 HRC) |
| Thickness | 1.3 pt / 1.5 pt / 2 pt | 2pt / 3 pt | 2 pt / 3pt |
| 0.45 m / 0.53 mm / 0.71 mm | 0.71 mm / 1.05 mm | 0.71 mm / 1.05 mm | |
| Height | 23.80 mm / 23.60 mm | 23.80 mm / 23.60 mm | 23.80 mm / 23.60 mm |
| Bevel profile | CF / CFDB | CF / CFDB | CF / CFDB |
| Bevel finish | bright ultrafine finish (Ra ~0.08 μm) razor blade technology | ||
| Bevel angle | 30° / 42° / 53° | 42° / 53° | 42° / 53° |
| Specials | TiN coated for extra long life on request |
PLAST-X HARD 800
THE UNIQUE WAY OF DIE-CUTTING.
durable & sharp
Unique dual edge and deep hardened.
Better cutting results with a higher rule stability.
YOUR BENEFITS
» super hard rule tip
» very hard secondary zone
» deep hardened
» super fine ground bevel
» hard body
» shorter second bevel
durable & sharp
Unique dual edge and deep hardened.
Better cutting results with a higher rule stability.
YOUR BENEFITS
» super hard rule tip
» very hard secondary zone
» deep hardened
» super fine ground bevel
» hard body
» shorter second bevel
PLAST-X HARD 800 STOCK AVAILABILITY
» long center bevel
» edge angle 42°
» 23.80/23.60 mm x 0.71 mm
» in coils of 100 meters
» clockwise (CW) - anti-clockwise (ACW)
» other specs available on request
» long center bevel
» edge angle 42°
» 23.80/23.60 mm x 0.71 mm
» in coils of 100 meters
» clockwise (CW) - anti-clockwise (ACW)
» other specs available on request
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
