X-Products
The next Generation X portfolio of cutting rules.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.

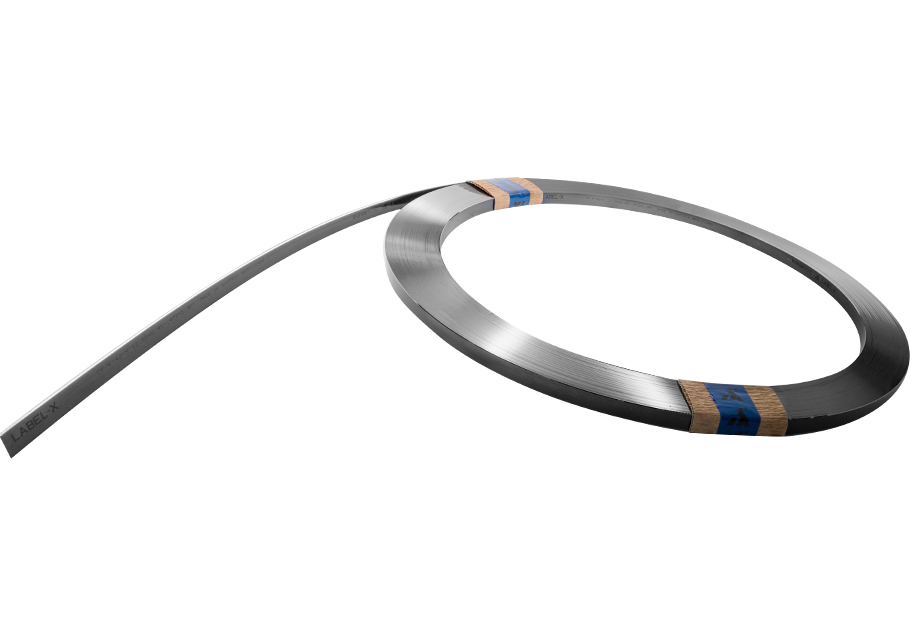

Label-X
The next generation label cutting rule is perfect for die-cutting of labels due to its excellent cutting performance with superfine cutting bevel and supersharp cutting edge. Three versions offer the perfect cutting solution for the label industry. LXS has the
focus on extreme bendability at reduced body hardness while LXH aims at maximum service life and stability due to its increased body and edge hardness. LX represents
the ideal compromise between LXS and LXH.
focus on extreme bendability at reduced body hardness while LXH aims at maximum service life and stability due to its increased body and edge hardness. LX represents
the ideal compromise between LXS and LXH.
Benefits
– Perfect cut quality
– Reduced friction in die-cutting
– Premium knife service life
– Tight height tolerances
– Reduced friction in die-cutting
– Premium knife service life
– Tight height tolerances
Features
– Hardness options
– Ultrafine cutting bevel
– Ultra sharp cutting edge
– Ultrafine cutting bevel
– Ultra sharp cutting edge

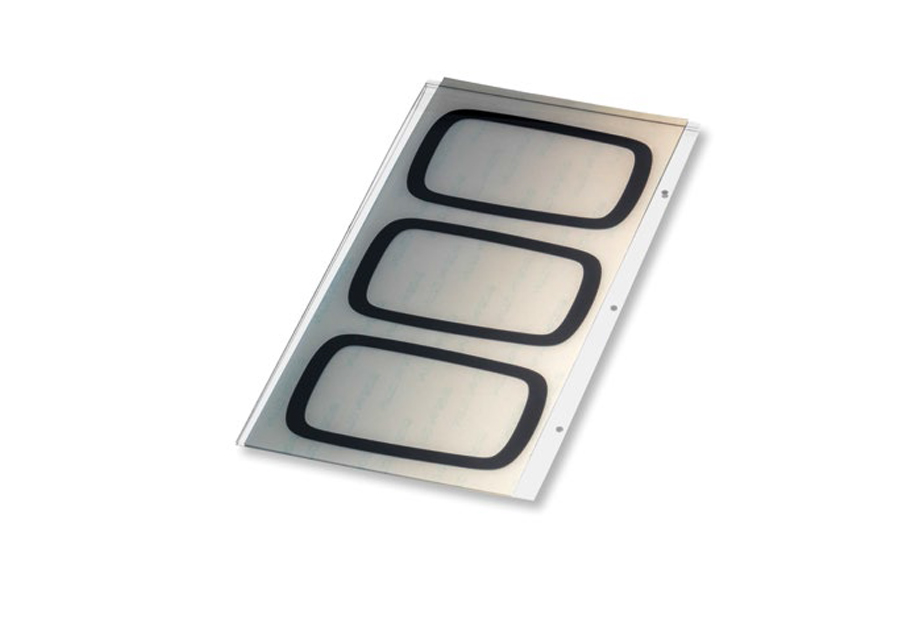

Application
– Paper labels
– Metallised labels
– Foils
– Films / foils in electronics industry
– Metallised labels
– Foils
– Films / foils in electronics industry
Specification
Specification Label-X
| PXS (soft) | PX (standard) | PXH (hard) | |
| Hardness | |||
| Body | ~340 HV (35 HRC) | ~390 HV (40 HRC) | ~450 HV (45 HRC) |
| Edge | ~625 HV (58 HRC) | ~625 HV (60 HRC) | ~670 HV (60 HRC) |
| Thickness | 1.3 pt | 1.3 pt | 1.3 pt |
| 0.45mm | 0.45mm | 0.45mm | |
| Height | 8mm / 9.5mm / 12mm | 8mm / 9.5mm / 12mm | 8mm / 9.5mm / 12mm |
| Bevel profile | CF | CF | CF |
| Bevel finish | bright ultrafine finish (Ra ~0.08 μm) razor blade technology | ||
| Bevel angle | 42° | 42° | 42° |
| Specials | TiN coated for extra long life on request / other bevel angels on request |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
