NFM Special Strip
Laser welded multi-material strip products for applications in the electronic and automotive industry in the field of non-ferrous-metals - welded strip products made in copper, in the longitude combination with copper alloys or steel for new possibilities for stamped and stamped/bent components.
THE PIONEER
IN
LASER WELDING
voestalpine Precision Strip is a pioneer and trailblazer for laser welding technologies and for more than 35 years has been the world’s largest manufacturer of bi-metal strips, and in this way at the same time a strategic key supplier for the world’s leading metal saw manufacturers. With our established longitudinal laser welding processes we connect different strip steels in unmatched quality - into a single inseparable unit with faultless, first-class weld seams which can then be further processed.
A multitude of material components are available for our welded multi-material special strips, which can be freely combined with one another. The tables show an extract of materials, which have already been welded with positive results in our welding plants. Further materials are available on request.
A multitude of material components are available for our welded multi-material special strips, which can be freely combined with one another. The tables show an extract of materials, which have already been welded with positive results in our welding plants. Further materials are available on request.
| COPPER | EN | UNS | BÖHLER-No |
| Cu-OF | CW 008 A | C10200 | C008 |
| Cu-PHC | CW 020 A | C10300 | C020 |
| Cu-HCP | CW 021 A | C10300 | C021 |
| CuFe2P | CW 107C | C19400 | C107 |
| CuNiSi | CW 109 C | C19010 | C109 |
| CuSn0,15 | CW 117 C | C14415 | C117 |
| CuSn4 | CW 450 K | C51100 | C450 |
| CuSn6 | CW 452 K | C51900 | C452 |
| CuNi3SiMg | n.g. | C70250 | C250 |
| CuMn12Ni2 | n.g. | n.g. | C362 |
| STEEL | DIN No | DIN No | BÖHLER-No |
| corrosion resistant & austenitic | 1.4301 | X5CrNi18-10 | A500 |
| corrosion resistant & austenitic | 1.4310 | X10CrNi18-8 | A520 |
| corrosion resistant & ferritic | 1.4509 | X2CrTiNb18 | N109 |
| Carbon steel | 1.0338 | DC04 | Q327 |

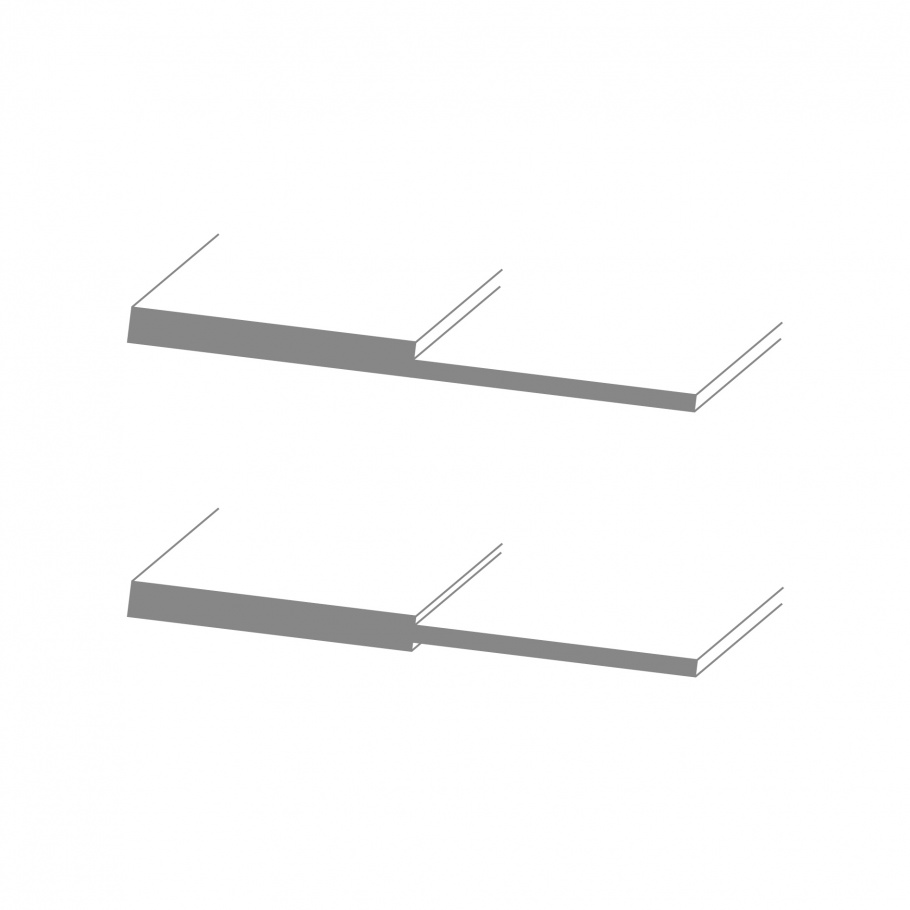

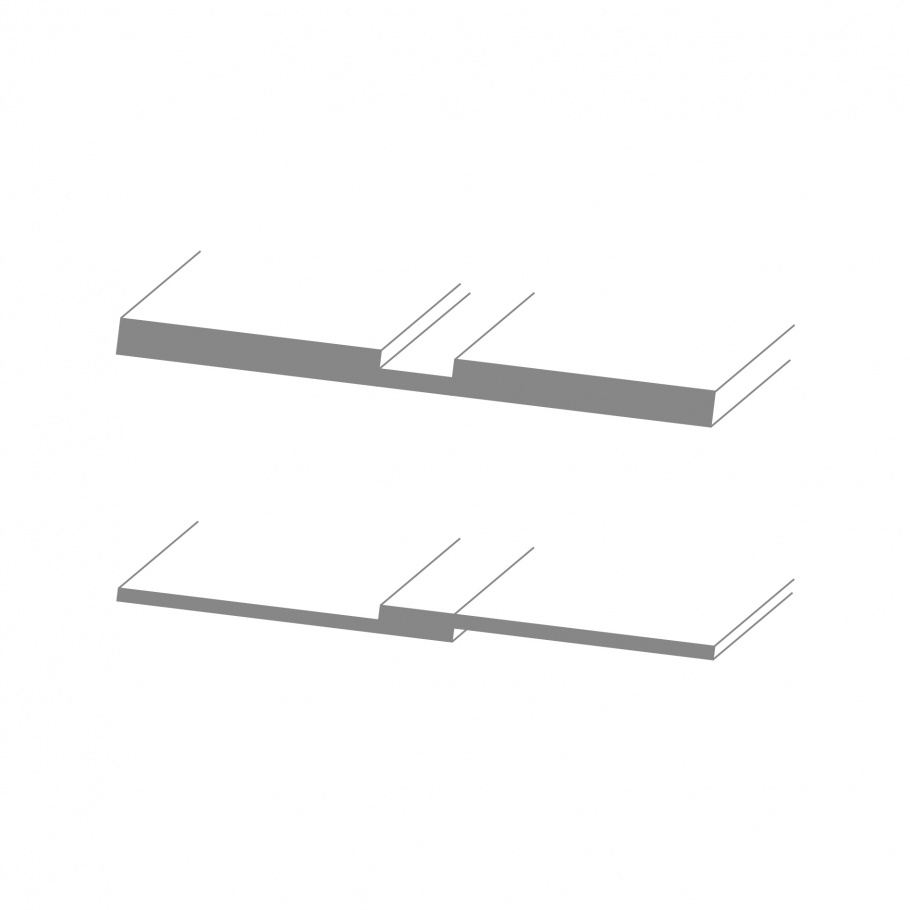

Example of cross-sectional representation of welded strips
Stamped parts with special features - no problem with our special strip!
