Flatbed steel rules
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
Edge profiles
To cope with the various rule requirements in die making Bohlerstrip offers the complete bevel range.

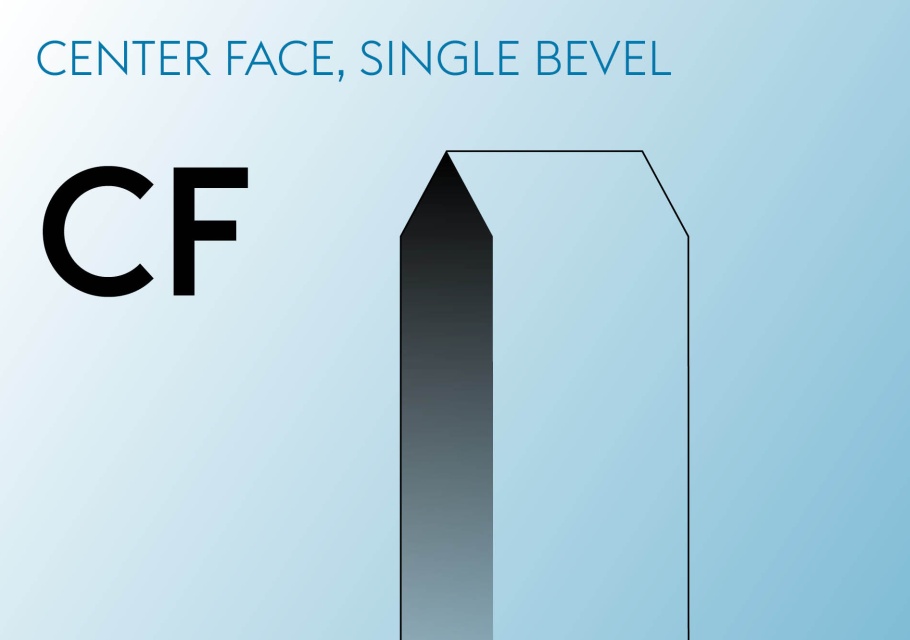

CF Centre Face, Single Bevel
Center Face bevel has become the norm for cutting standard packaging materials.
Standard edge angle: 53° (others on request)
Standard edge angle: 53° (others on request)

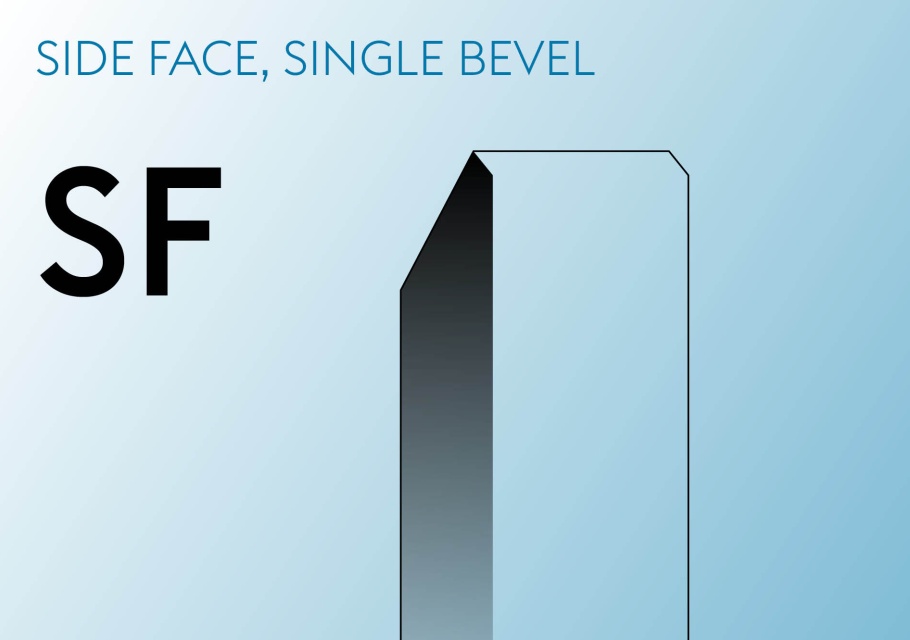

SF Side Face, Single Bevel
SF bevels are best suitable for cutting thick materials where a straight / vertical cut is required.
SF bevel is not available in “G” execution.
SF bevel is not available in “G” execution.

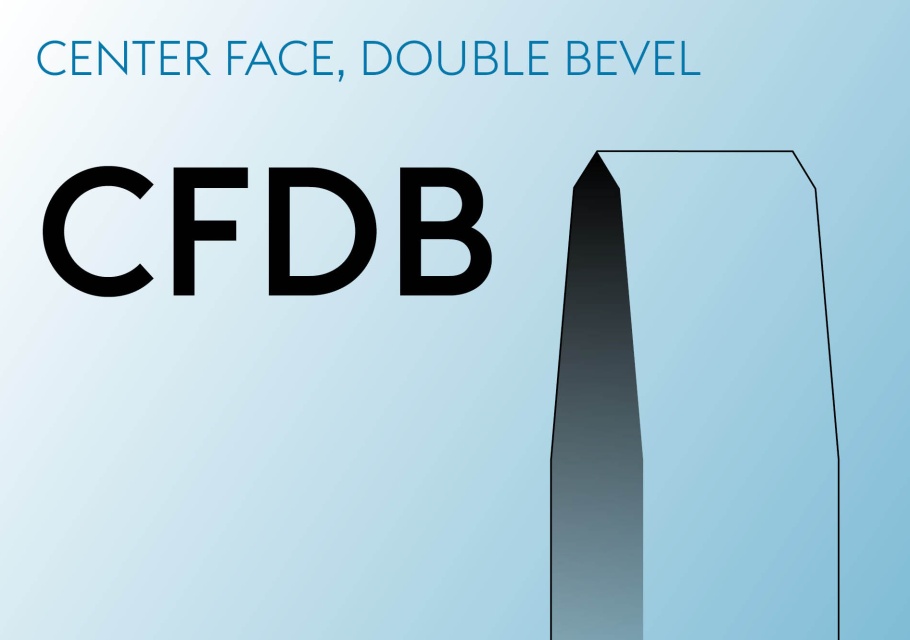

CFDB Centre Face, Double Bevel
This type of cutting bevel reduces the cutting force when cutting hard / thick materials such as glass fibre reinforced laminates, leather, cork, rubber, jigsaw puzzles, corrugated board, plastics, plywood. CFDB bevel is recommended for multi-layer cutting, when the thickness of the material exceeds the length of the first cutting bevel.

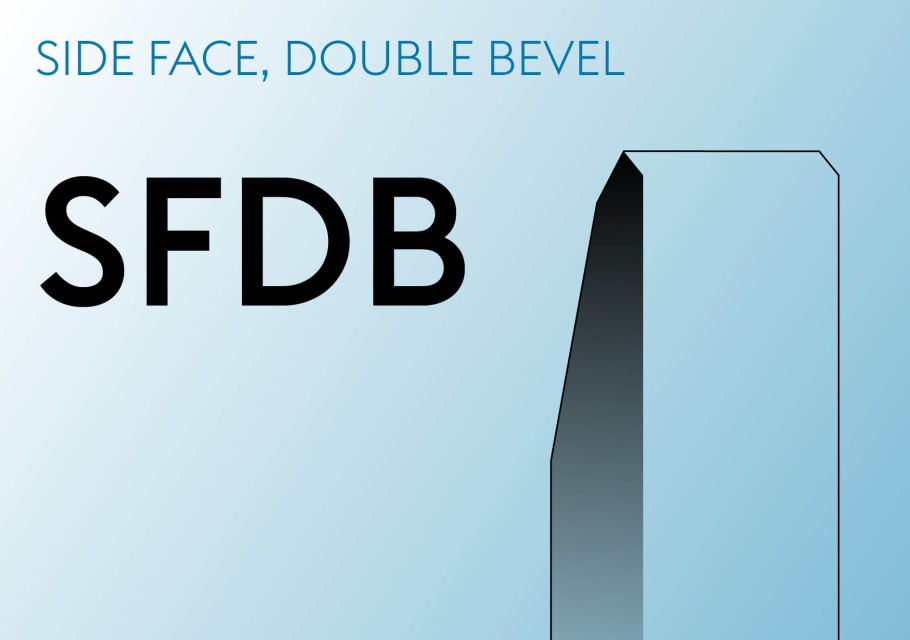

SFDB Side Face, Double Bevel
SFDB profile offers the same benefits as CFDB bevel when cutting thicker materials. The substrate is left with a square 90° cut edge and all the distortion from penetration is left on the material waste. SFDB bevel is not available in “G” execution.
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
